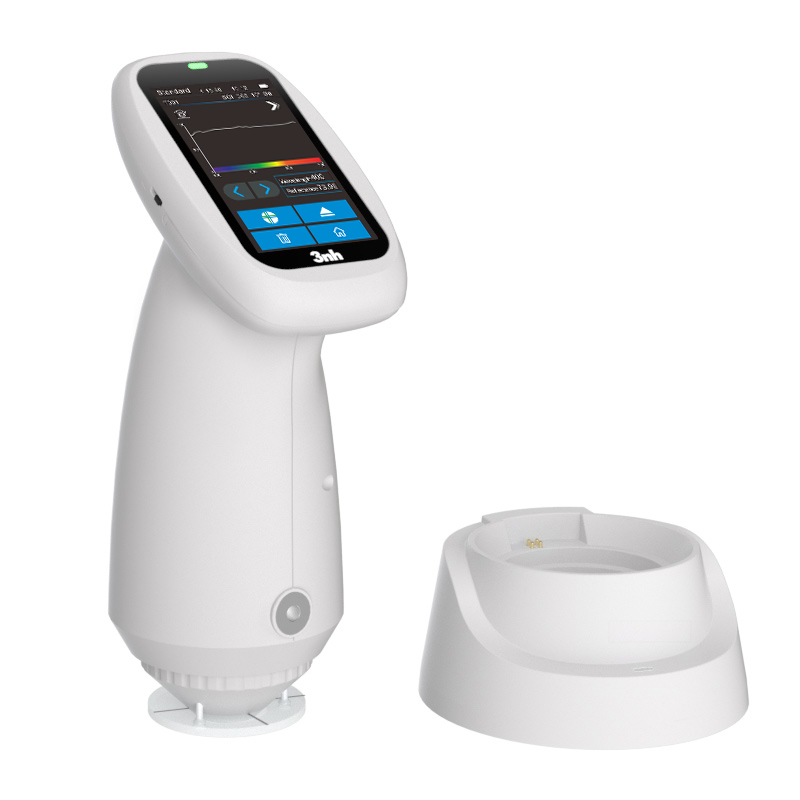

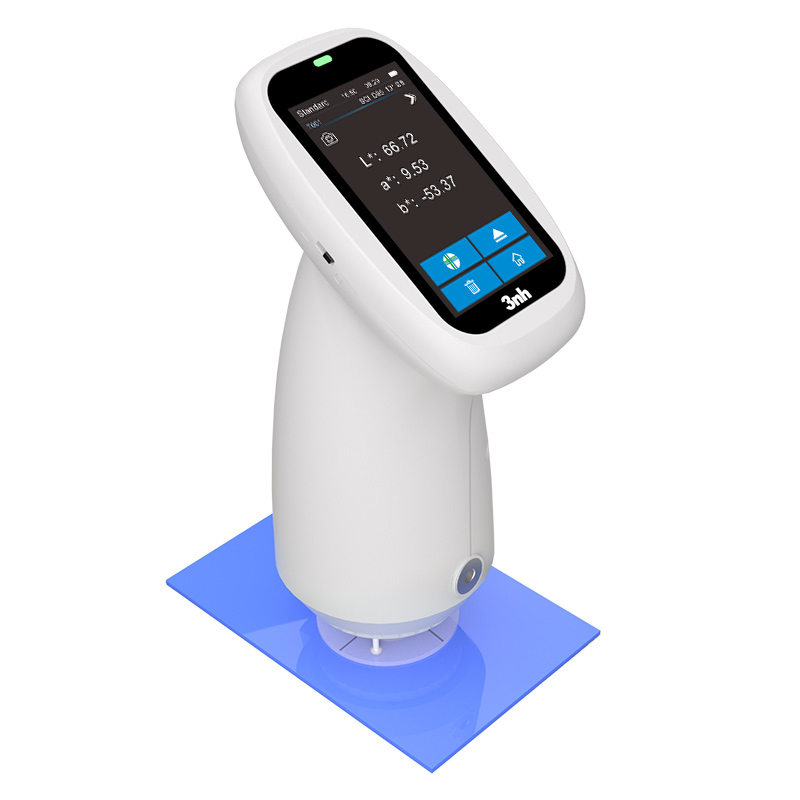

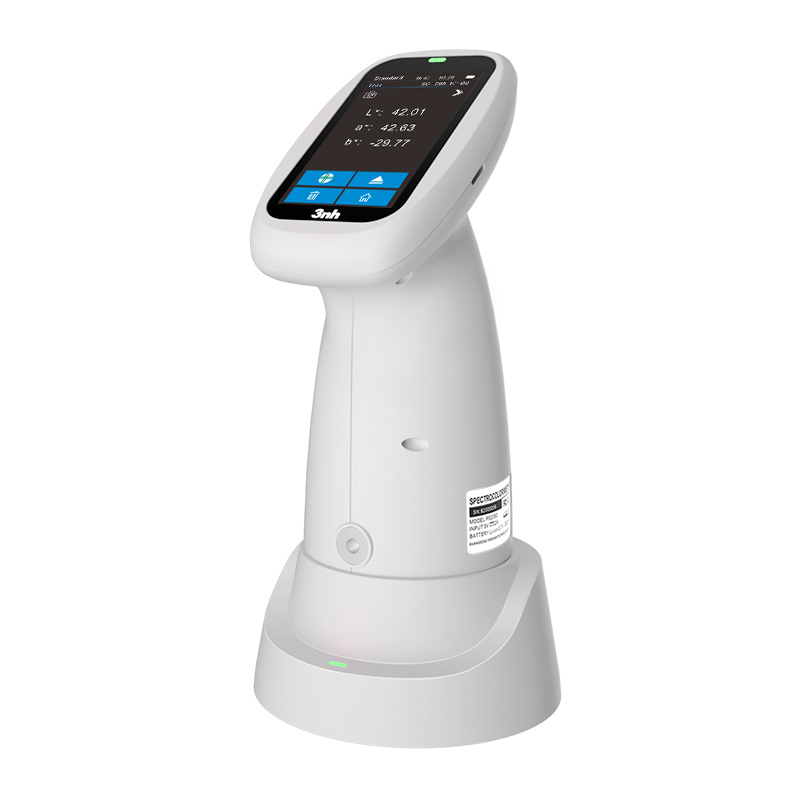

As a popular model in the domestic PS series spectrophotometers, the PS230 integrates professional performance and user-friendly experience. It is a reliable partner for strict color quality control and is widely trusted by users.
The PS230 spectrophotometer is equipped with a silicon photodiode array sensor (dual-row, 16 groups). Adopting the integrating sphere D/8 structure and dual optical path design—features exclusive to spectrophotometers—it delivers simple operation, low inter-instrument agreement, high stability, and highly repeatable and accurate measurement data.It features a sleek, rounded design and comfortable grip.
A built-in HD camera allows clear observation of the measured area. The instrument is equipped with a UV light source and full-band balanced LED light source with a wavelength range of 400-700 nm, specially designed for color and reflectance measurement of fluorescent materials.
The PS230 provides six measurement apertures:Φ8 mm (flat + small tip), Φ4 mm (flat + small tip), and 1×3 mm (flat + small tip), making it ideal for color difference testing of small-sized samples.It is widely used in plastics & electronics, paint & ink, and many other industries.The instrument supports connection with computers and mobile devices. Its professional quality management software is compatible with Android, iOS, Windows, HarmonyOS, WeChat Mini Program, and Cloud Color Matching services, enabling efficient and convenient quality monitoring and data management anytime, anywhere.
Product Features
Core Performance
Illumination/Viewing Geometry: Internationally accepted D/8 geometry, supporting SCI (Specular Component Included) mode. Complies with CIE No.15, GB/T 3978, and other international and domestic standards, ensuring authoritative and universal measurement results.

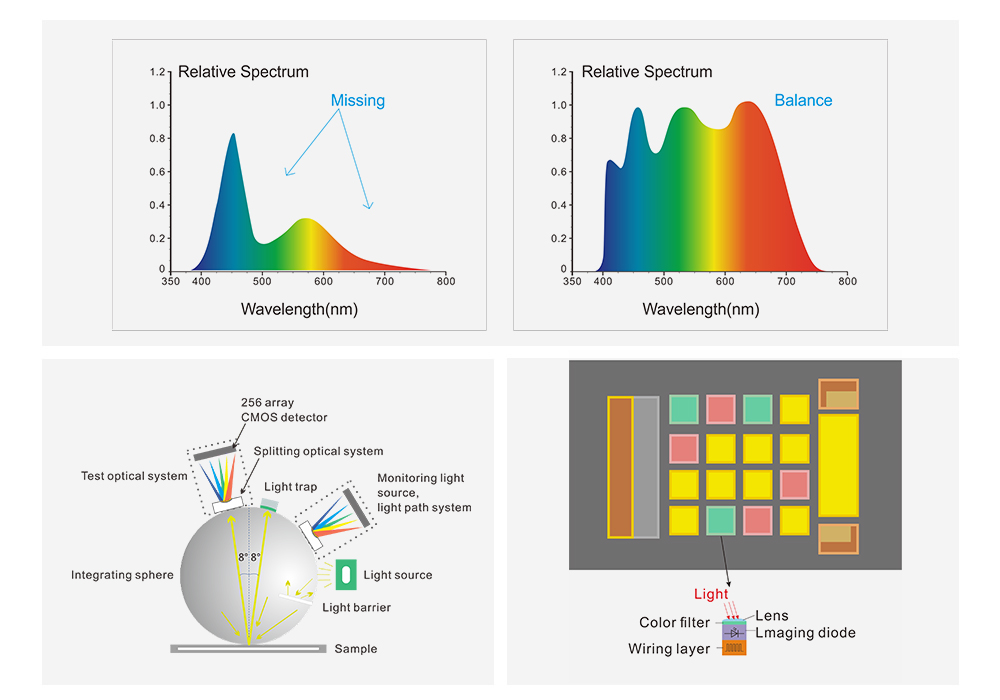

Dual Optical Path Design: Built with silicon photodiode array (dual-row, 16 groups) sensor and Φ40 mm integrating sphere, improving data processing efficiency and accuracy.
Full band LED Light Source (with UV): 400-700 nm full-spectrum acquisition with uniform spectral distribution in the visible range, avoiding spectrum gaps common in ordinary white LEDs. Equipped with a dedicated UV light source, specially designed for fluorescent materials.
Repeatability: Standard deviation of chromaticity value ΔE*ab ≤ 0.02, ensuring high consistency.

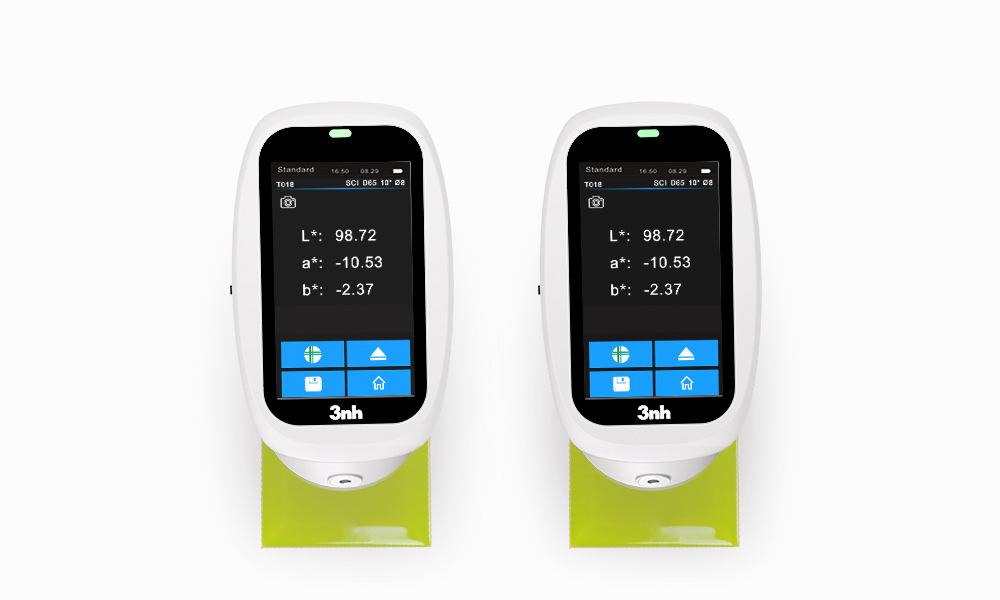

Inter-instrument Agreement: ΔE*ab ≤ 0.2, ensuring excellent consistency among multiple instruments for unified quality control.

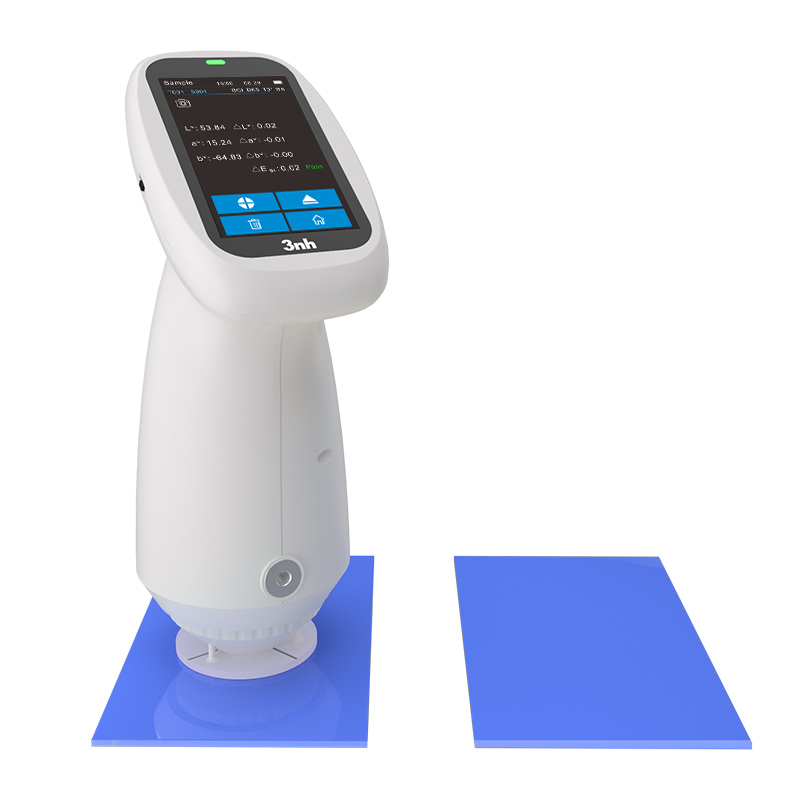

Human Machine Interaction: 2.8-inch TFT true-color capacitive touch screen, supporting one-key measurement. The interface clearly displays spectral graph, color values, color difference, pass/fail judgment, color simulation, and color tendency, simplifying operation.

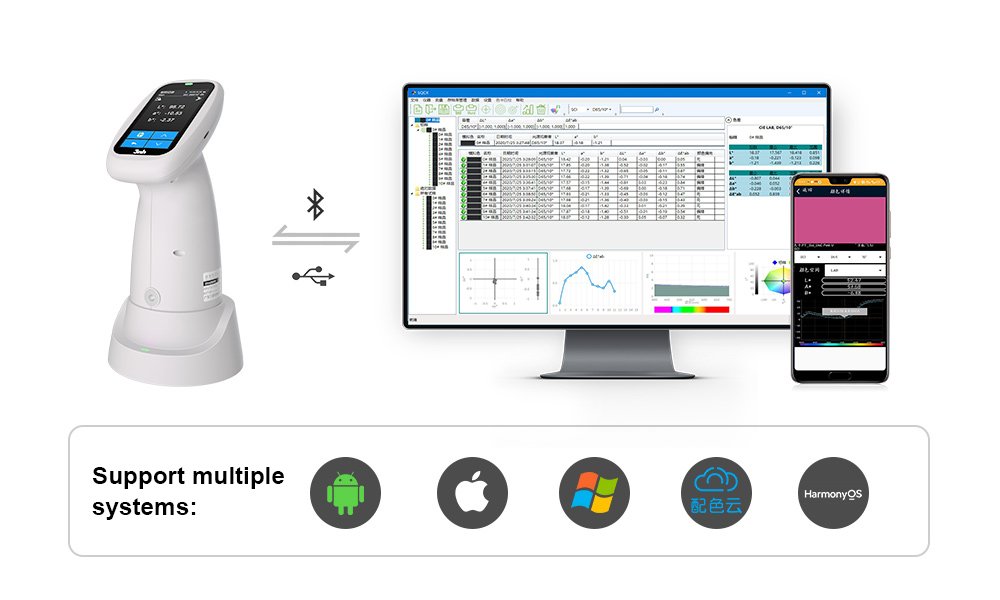

Multi-device Collaboration: Supports USB and Bluetooth 5.0 connection to PC, mobile phones (Android, iOS, HarmonyOS), and WeChat Mini Program (Cloud Color Matching).With professional quality management software, it realizes real-time data synchronization, report generation, and cloud storage (200 standards, 10,000 samples on APP/PC), supporting remote collaboration and mobile office.
Function Highlights

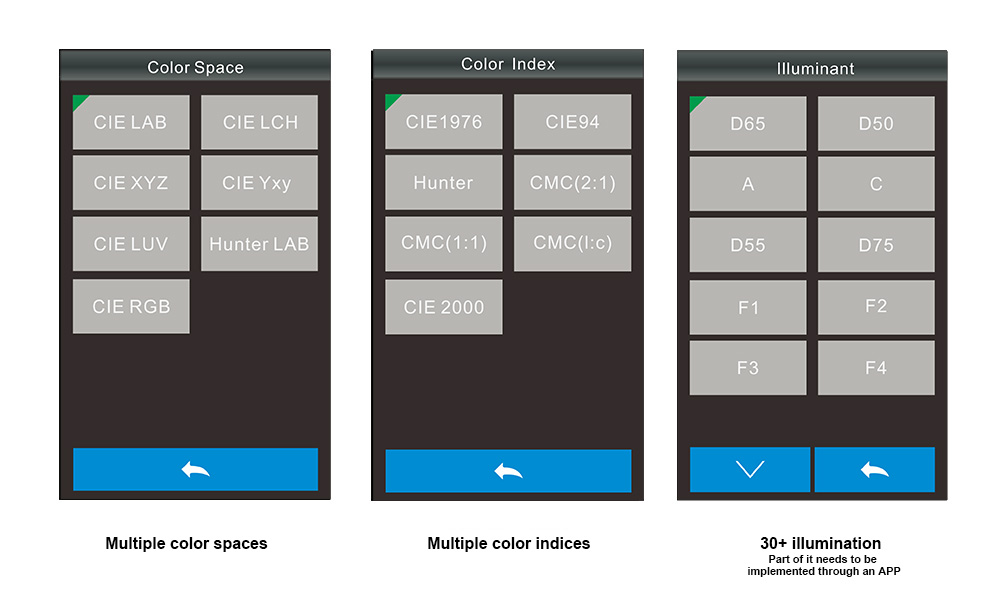

Color Spaces & Formulas: Supports CIE LAB, XYZ, HunterLab, etc., and major color difference formulas ΔEab, ΔEcmc, ΔE*00.Measures spectral reflectance, whiteness (WI), yellowness (YI), metamerism index Mt, staining/color fastness, and more. Some functions (Munsell, CMYK) are available via mobile APP.
Observation Light Sources: Built-in 30+ light sources including D65, A, C, D50 (including UV), fully meeting fluorescent material testing.

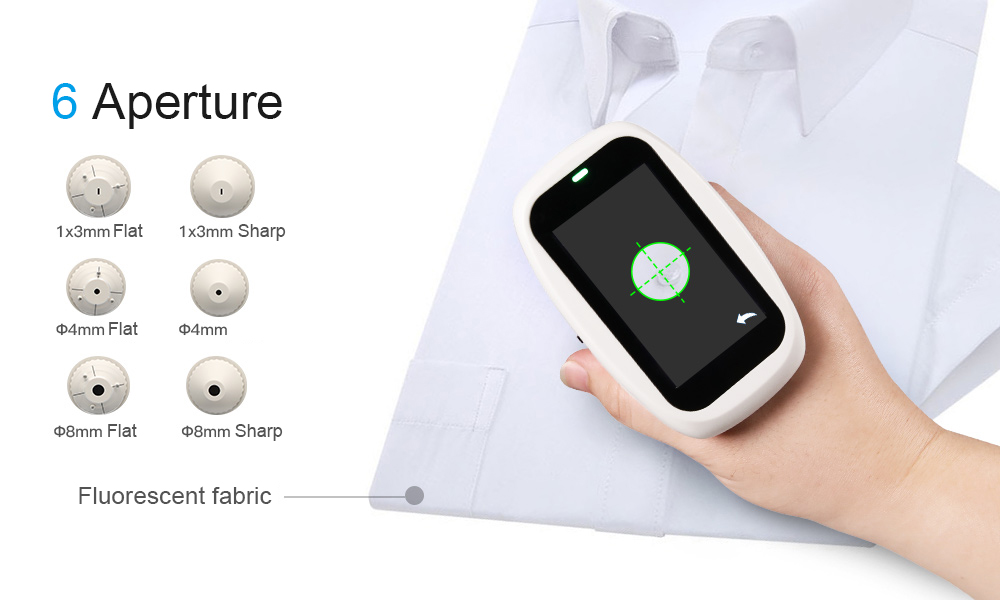

Flexible Apertures: Φ8 mm/Φ10 mm, Φ4 mm/Φ5 mm, 1×3 mm (flat + small tip), suitable for various sample sizes and shapes: general parts, small electronics, curved coatings, arc surfaces, fluorescent samples, etc.Positioning stabilizer ensures accurate measurement positioning.

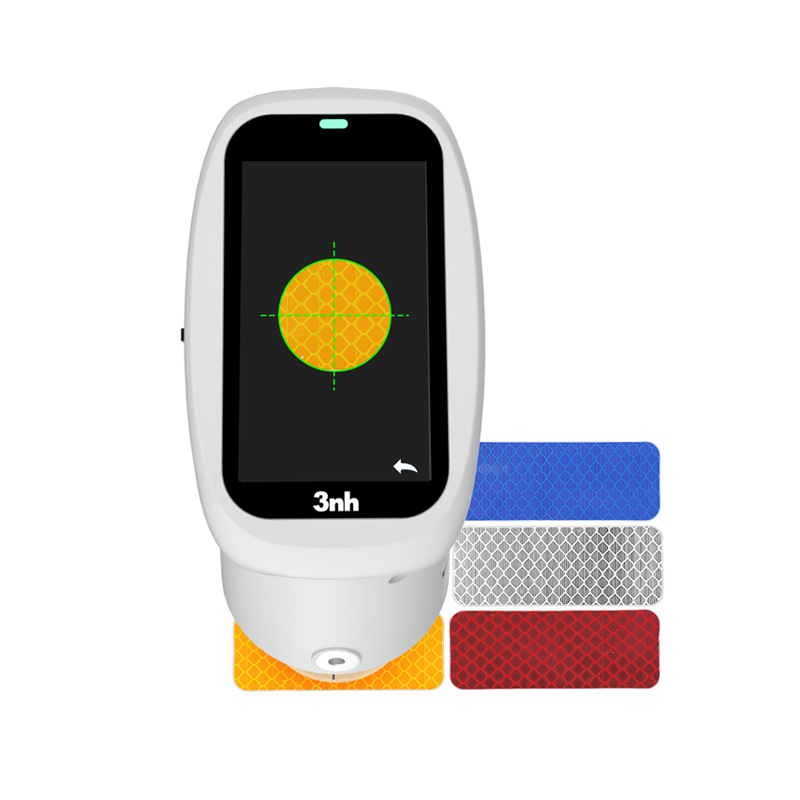

Built-in HD Camera: Real-time viewing and precise positioning, ensuring measurement at the target area and improving efficiency and accuracy.
Fluorescent Material Support: Dedicated UV light source for color and reflectance measurement of fluorescent materials, expanding application scenarios.
Technical Specifications
Spectrophotometer | |
Model | PS230 |
Illumination | D/8 (Diffuse / 8°), SCI, complying with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 |
Features | Color quality control for plastics, paint, textile, printing, ceramics; UV for fluorescent materials |
Light Source | Combined full-spectrum LED + UV light source |
Integrating Sphere | Φ40mm |
Spectroscopy | Nano-integrated spectral device |
Sensor | Silicon photodiode array (dual-row, 16 groups) |
Wavelength Range | 400-700nm |
Measuring Apertures |
MAV: Φ8 mm / Φ10 mm (flat + tip) |
Light Component | SCI |
Color Spaces | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 |
Color Difference Formulas | ΔE*ab,ΔE*uv, ΔE*94,ΔE*cmc(2:1) ,ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
Other Indices | Spectral Reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Metamerism Index Mt, Staining Fastness, Discoloration Fastness, Strength, Coverage, 555 Tone Classification, Munsell (C/2) (Realized by Mobile App), CMYK |
Observer | 2°/10° |
Light Sources | D65,A,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5,F6, F7(DLF),F8,F9,F10(TPL5), F11(TL84),F12(TL83/U30), U35,NBF,ID50,ID65, LED-1,LED-2,LED-3,LED-4,LED-5 ,LED-6,LED-7,LED-8,LED-9,LED-10(Partially achieved through mobile phone apps) |
Display | Spectrum, color data, ΔE, pass/fail, color simulation, color tendency |
Measuring Time | Approx. 1 s |
Repeatability | ΔE*ab ≤ 0.02; Reflectance SD ≤ 0.08% (400-700 nm ≤ 0.18%) |
Inter-Instrument Agreement | ΔE*ab ≤ 0.2 (BCRA Series II 12 tiles) |
Display Precision | 0.01 |
Reflectance Range | 0-200% |
Reflectance Resolution | 0.01% |
Measuring Mode | Single, Average (2-99 times) |
Positioning | Stabilizer + Camera positioning |
Calibration | Contact white calibration |
Dimensions | 94 × 68 × 188 mm (excl. base) |
Weight | 410 g (excl. base) |
Battery | 3.7 V 3200 mAh Li-ion, up to 8000 measurements in 8 hours |
Light Source Life | >1.2 million measurements in 10 years |
Screen | 2.8-inch TFT capacitive touch |
Interface | USB, Bluetooth® 5.0 |
Storage | 200 standards, 10,000 samples; cloud storage via APP/PC |
Software | Android, iOS, Windows, WeChat Mini Program, HarmonyOS |
Language | Chinese(Simplified/Traditional), English |
Operating Environment | 0-40°C, 0-85%RH (non-condensing), altitude<2000 m |
Storage Environment | -20-50°C, 0-85%RH (non-condensing) |
Standard Accessories | Power adapter, USB cable, manual, QC software, white calibration box, protective cover, wrist strap, apertures |
Optional Accessories | Mini printer, powder test kit |
Note | Specifications are for reference only, subject to the actual product |
Applications
The PS230 spectrophotometer is widely used for color quality control in plastics & electronics, paint & ink, textiles & garments, printing, ceramics, and more.With UV function, it is especially suitable for fluorescent sample measurement.
