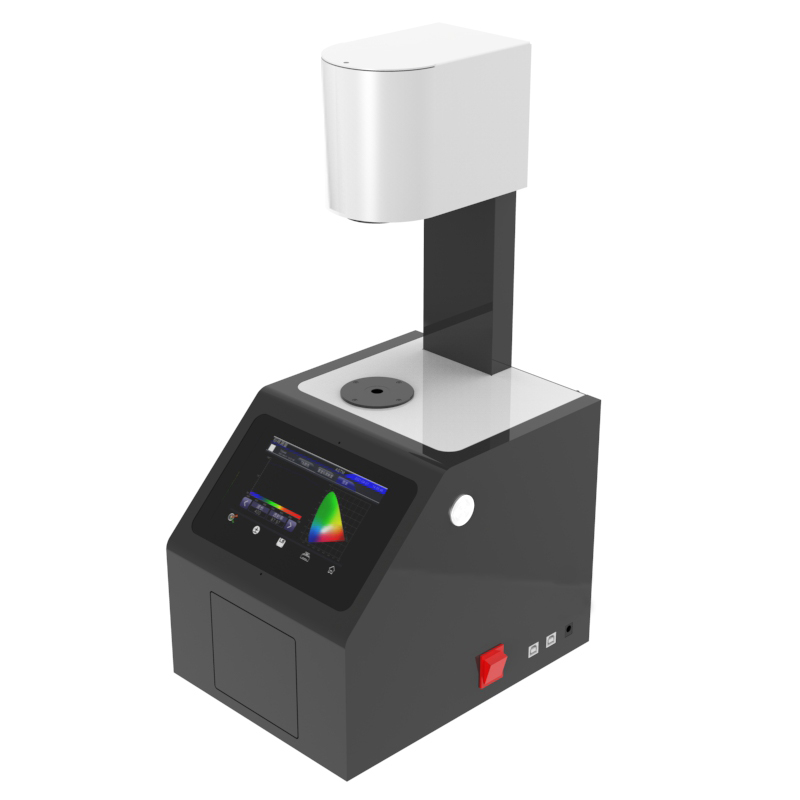

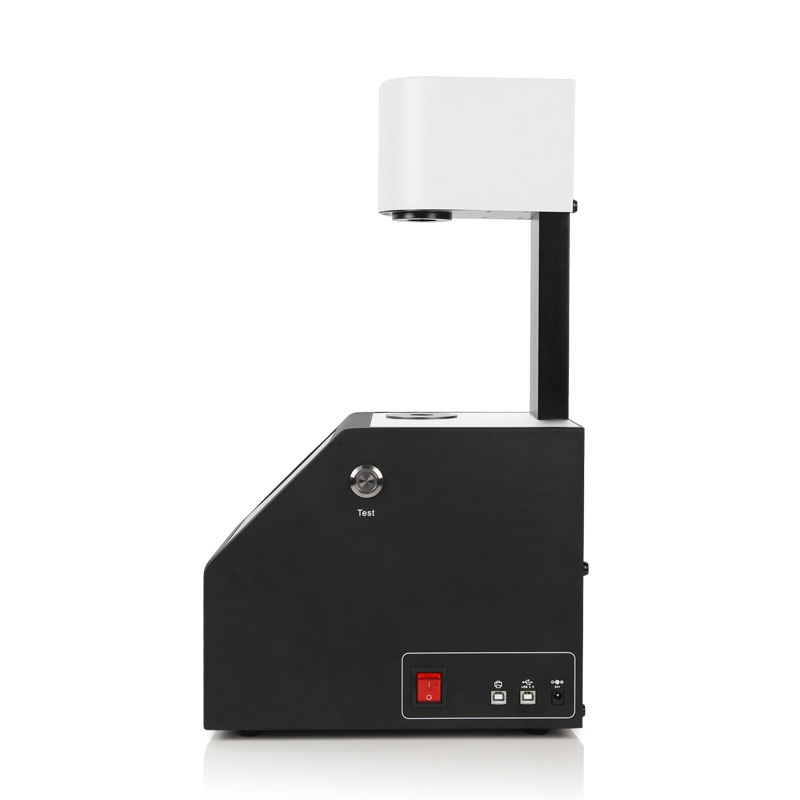

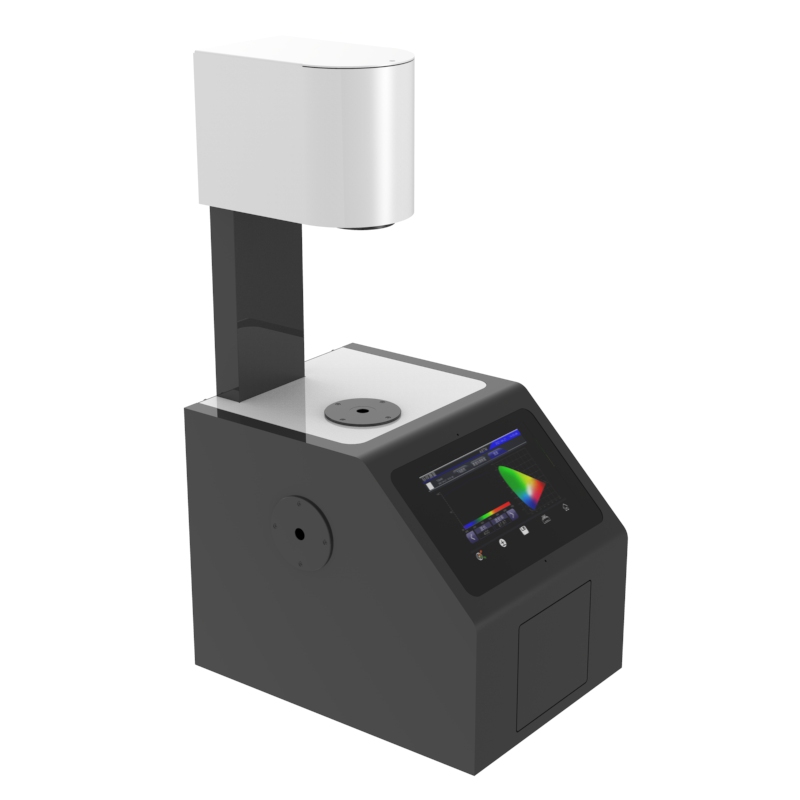

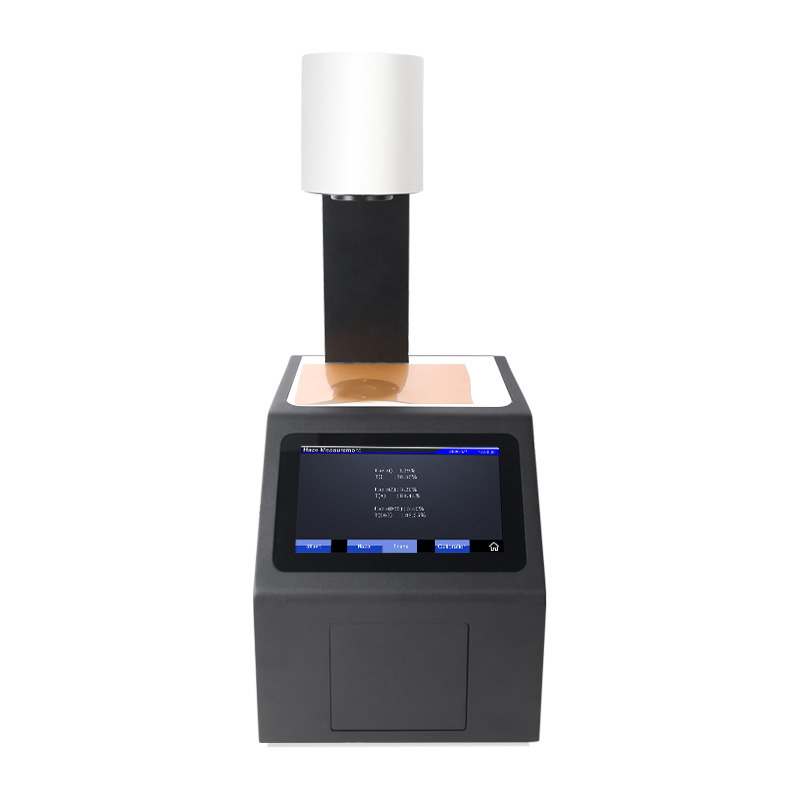

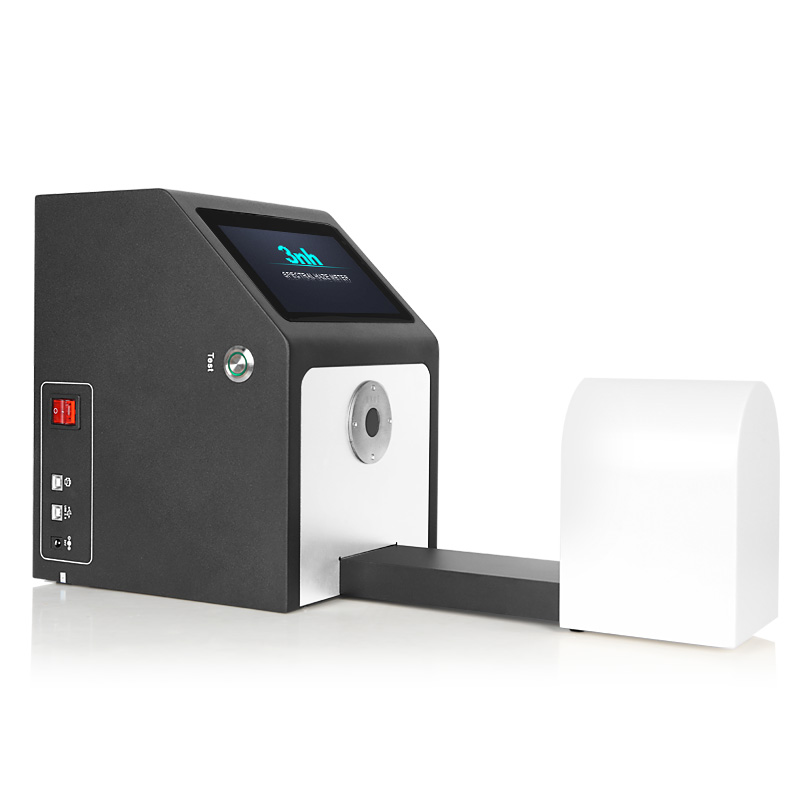

KS1310 color haze meter is a precision optical instrument integrating haze, transmittance, and colorimetric/color difference measurements. It adopts a 154mm integrating sphere, a 400~700nm combined LED light source and nano-integrated spectral devices design, and complies with relevant standards such as GB/T 2410, ASTM D1003/D1044, ISO 13468/14782, and CIE 15.2. Its core performance has been comprehensively upgraded, with significant improvements in data stability, continuous operation capability and data storage capacity. It is mainly used for optical and appearance quality control of transparent/semi-transparent materials such as glass, plastics, films, displays, packaging, and liquid pharmaceuticals. The KS1310 color haze meter supports both vertical and horizontal testing modes, adapting to various measurement needs. It can easily perform full transmittance and haze testing under the ASTM D1003 uncompensated method and the ISO 13468 compensated method, and can accurately acquire the transmittance curve of the transmitted sample, precisely outputting various colorimetric data.

1. Supports both compensated and uncompensated haze testing methods, and is compatible with international standards.

Dual-mode compatibility: Supports both ASTM D1003 uncompensated method and ISO 13468 compensated method testing, meeting the haze and total transmittance testing requirements of different industries.

High-precision output: It can accurately acquire the transmittance curve of the transmitted sample and output a variety of colorimetric data, suitable for industries such as glass, films, and packaging.

International Standards Endorsement: Complies with 12 domestic and international standards including ASTM D1003/1044, ISO 13468/14782, and GB/T 2410. Measurement results are recognized in the global market.

2. High-stability LED light source with a lifespan of up to 5 years/3 million measurements

Long lifespan and durability: 400~700nm combined LED light source with a lifespan of 5 years or 3 million measurements, suitable for factory 24-hour continuous operation scenarios.

Spectral integrity: Covers the entire visible light spectrum with no specific band missing, ensuring the accuracy of chromaticity and haze measurements.

Low maintenance costs: The light source does not need to be replaced frequently, with low annual maintenance costs, suitable for high-frequency, long-term use environments.

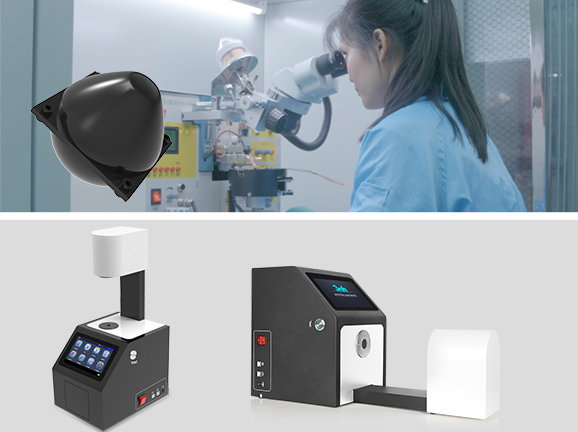

3. Nanoscale integrated spectral devices + high-resolution sensing, high measurement accuracy

Core hardware configuration: Nano-integrated spectroscopic devices with a 154mm integrating sphere, improving spectral acquisition accuracy and repeatability.

High repeatability: The repeatability of haze and transmittance is less than 0.028 (20mm diameter, standard deviation of 30 tests), and the repeatability of color difference is also better than 0.028.

Fast response: A single measurement takes only 1.5 seconds and supports multiple diameter options of 20/15/8mm, adapting to samples of different sizes.

4. Full-dimensional data visualization, intuitive and convenient operation

Intuitive display: 7-inch TFT true color capacitive touch screen, real-time display of spectrum, chromaticity value, color difference diagram, chromaticity diagram, color simulation and pass/fail judgment.

Intelligent assistance: Supports multiple color spaces and color difference formulas, with a built-in multilingual system (Chinese/Traditional Chinese/English), lowering the operation threshold.

Flexible operation: Supports USB, printer serial port, and Bluetooth interface, and can be connected to quality management software to realize data storage and export (5000 standard samples, 30000 test samples).

5. A fully compatible color system to meet the customization needs of multiple industries.

Multiple color spaces: Supports 8 color spaces including CIE LAB, XYZ, Yxy, LCh, and Hunter Lab, adapting to industry standards such as plastics, glass, and liquids.

Multiple color difference formulas: Includes mainstream formulas such as ΔE*ab, ΔE*94, ΔE*cmc, ΔE*00, and ΔE*uv, meeting the color difference evaluation needs of different customers.

Multiple observation conditions: Supports 30+ observation light sources including D65, A, C, D50, and F series, 2°/10° dual observer angles, adapting to global testing standards.

6. Widely applications range, covering optical quality control in multiple industries.

Glass/Plastic Processing: Used for testing the haze and transmittance of transparent sheets, films, and lenses.

Display/Packaging Industry: Evaluating the light transmittance uniformity and color consistency of backlight modules and packaging materials.

Liquid pharmaceutical analysis: Supports the measurement of multiple indicators such as platinum cobalt color, turbidity, and absorbance, suitable for chemical and pharmaceutical industries.
