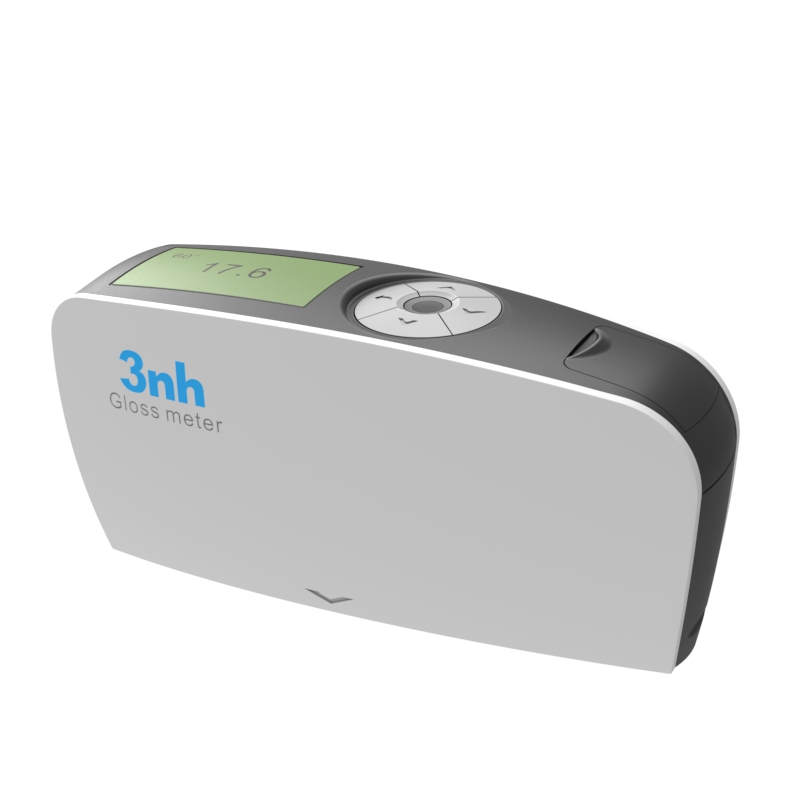

3NH KS60S Glossmeter A portable gloss quality inspection tool designed for paints, inks, coatings, paper printing, and more. It effectively solves the core pain points in gloss measurement: low efficiency, poor accuracy, and limited adaptability. It is battery powered, offering up to 100,000 measurements on a single charge. Equipped with a 60° measurement angle (spot size: 9×15 mm), it features a wide range of 0-200 GU and a fine resolution of 0.1 GU. A measurement is completed in just 0.5 seconds, making it suitable for batch production quality control, capturing subtle gloss differences, and ensuring stable appearance quality. It complies with the JJG 696-2015 standard.

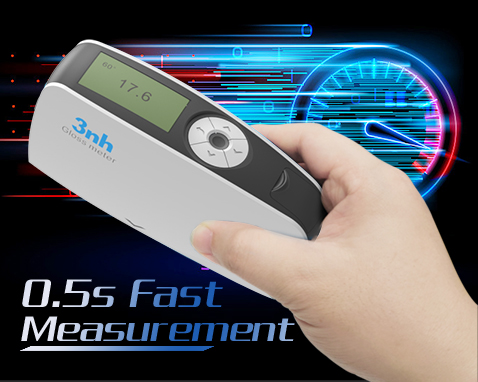

Fast measurement:completes a test in just 0.5 seconds, reducing inspection time for batch testing and significantly improving quality inspection efficiency.
Clear display: 2.3-inch monochrome screen provides intuitive data at a glance, eliminating the need for repeated checks.
Ultra-long battery life: powered by one AA battery, offering up to 100,000 measurements on a single charge, reducing battery procurement and replacement costs.

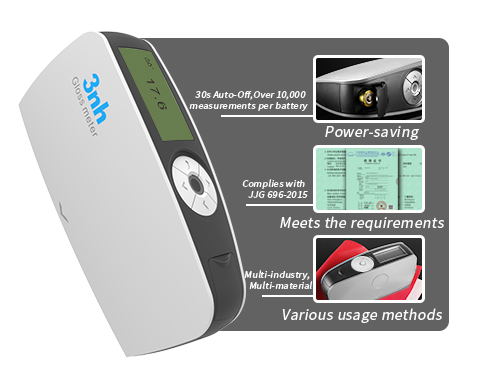

Smart power saving: automatic shutdown after 30 seconds to prevent battery waste and extend battery life.
Universal power supply: USB interface design eliminates the need for a dedicated adapter, lowering accessory costs.
Authoritative compliance: meets JJG 696-2015 glossmeter requirements for more accurate data.
Multi-purpose use: compatible with inspections across multiple industries and materials, saving the cost of purchasing and storing multiple dedicated instruments.

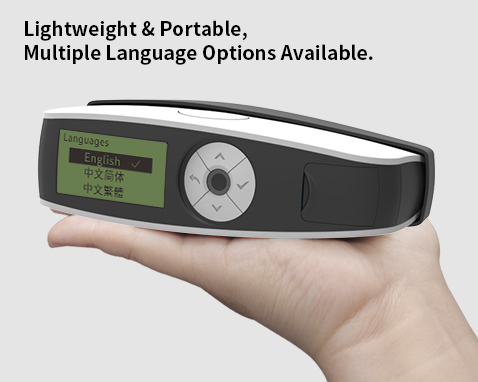

Lightweight and portable:300g body with compact dimensions of 160×52×84mm, easy to carry for on-site quality inspections anytime, anywhere.
Multi-language support: switch between Simplified Chinese, English, and Traditional Chinese to accommodate different operators and enable quick team onboarding.

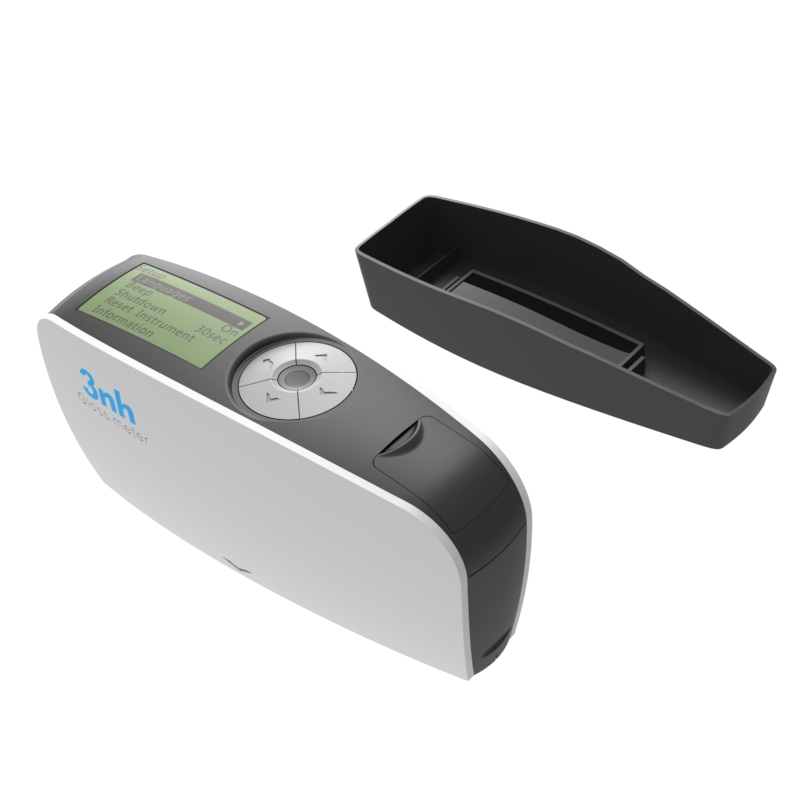

Self-calibration:comes with a standard calibration plate and manual calibration design, making operation simple and easy. Quickly calibrate the instrument before each test to ensure accurate instrument status.

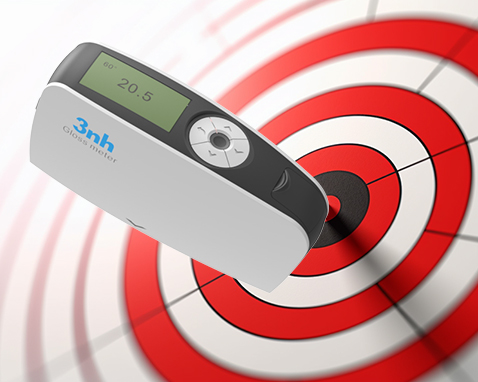

High repeatability:precision of ±0.5 GU in the 0-100 GU range and ±0.5% GU in the 100-200 GU range, reducing measurement errors and avoiding losses from rework and returns.
Wide range and high resolution: 0-200 GU measuring range with a fine resolution of 0.1 GU, meeting high-precision inspection requirements across various applications.
| KS Glossmeter Technical Specifications | |
| Product Model | KS60S Glossmeter |
| Measurement Angle | 60° |
| Measurement Spot(mm) | 60°:9X15 |
| Measurement Range | 60°:0~200GU |
| Resolution | 0.1GU |
| Features | Suitable for gloss measurement and gloss data transfer in industries such as paints, inks, coatings, paper printing, plastics and electronics, furniture, ceramics, electroplating, hardware, marble, etc. |

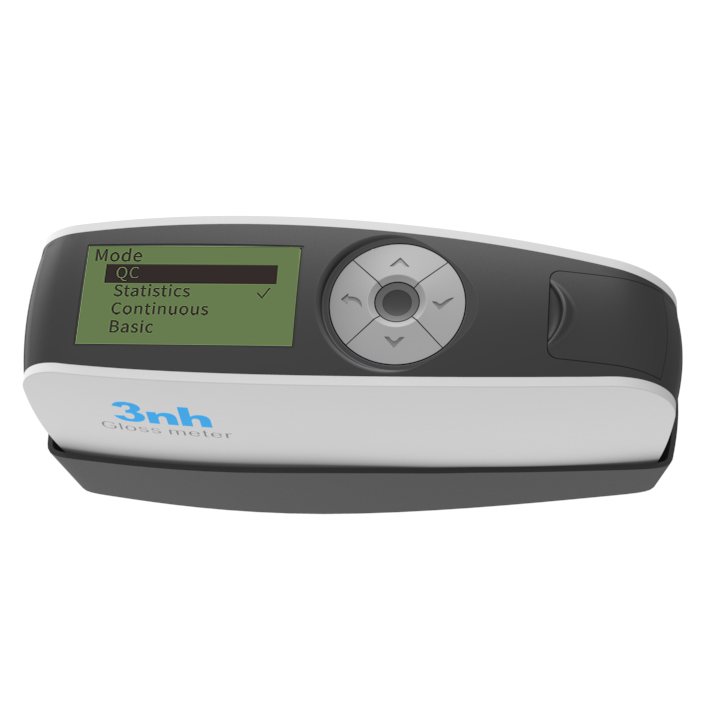

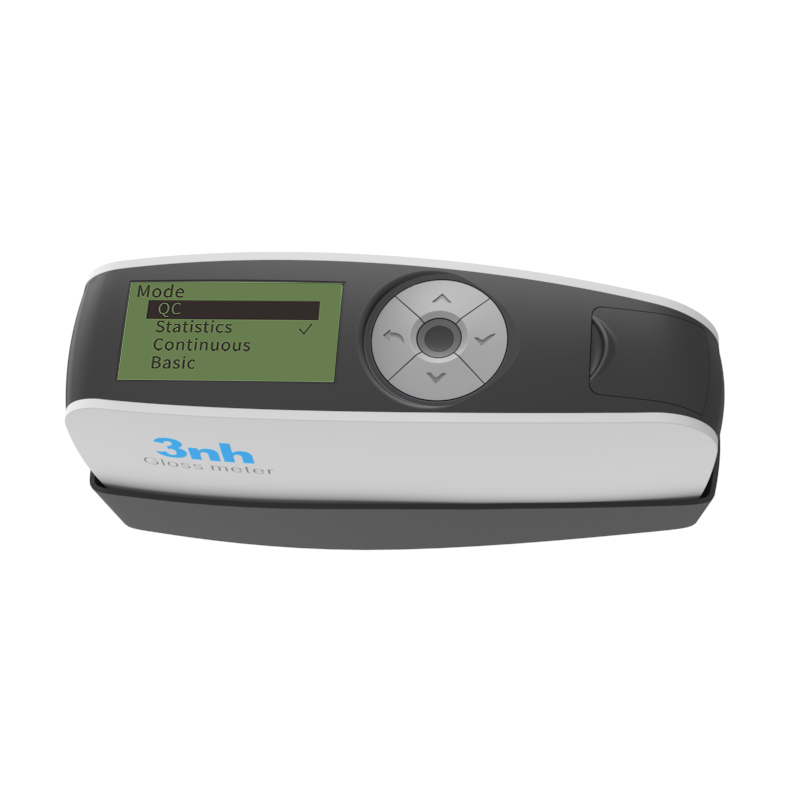

| Measurement Modes | Basic mode |
| Measurement Time | 0.5 seconds |
| Repeatability | 0~100GU:±0.5GU ; 100~200GU:±0.5%GU |
| Accuracy | Meets the requirements of JJG 696 for working glossmeters |
| Auto Shutdown Time | 30s |
| Long-Term Calibration | Long-Term Calibration Manual calibration |
| Language | Simplified Chinese, English, Traditional Chinese |
| Data Storage | / |
| Display | 2.3-inch monochrome display |
| Dimensions | 160 X 52 X 84mm |
| Weight | Approx. 300 g (including calibration case and battery) |
| Power Supply | Powered by 1 AA battery (alkaline or Ni-MH rechargeable), capable of over 10,000 measurements; or via USB port |
| Interface | USB |
| PC Software | / |
| Operating Temperature Range | 0~40℃（32~104°F） |
| Storage Temperature Range | -20~50℃（-4~122°F） |
| Humidity | Less than 85% RH, non-condensing |
| Standard Accessories | instruction manual, calibration plate |
| Optional Accessories | Micro printer, Bluetooth 5.0 adapter |
| Note | Technical parameters are for reference only, subject to the actual product sold. |
